Reference TDS: MD >= 30 MPa; TD >= 17 MPa
← Stretch Film Machine Roll

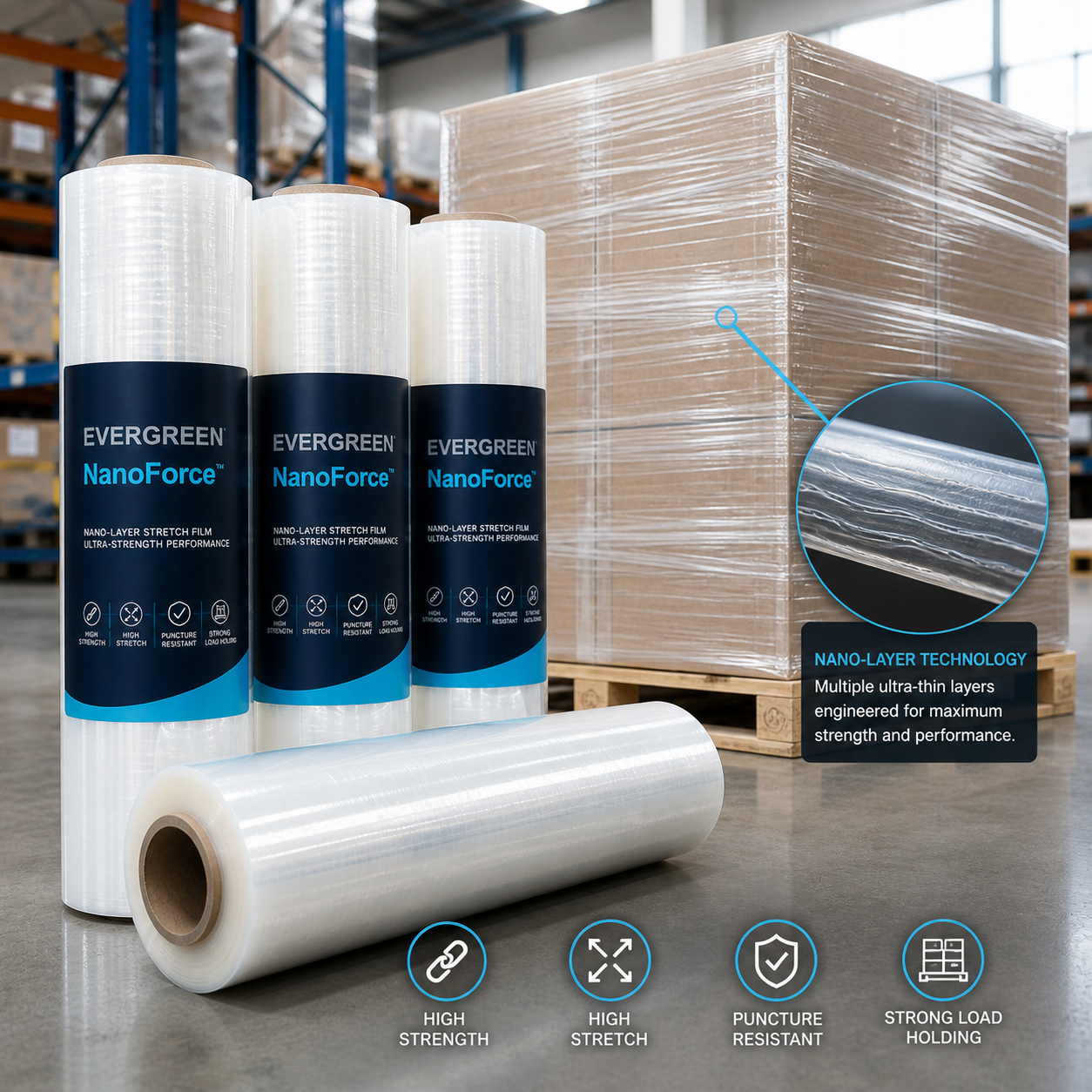

EVERGREEN NanoForce is an ultra-thin nano-layer stretch film direction for customers seeking stronger load holding, downgauging potential and efficient machine wrapping performance without losing practical puncture and elastic recovery behavior.
Product overview
EVERGREEN NanoForce for machine roll applications.
EVERGREEN NanoForce is an ultra-thin nano-layer stretch film direction for customers seeking stronger load holding, downgauging potential and efficient machine wrapping performance without losing practical puncture and elastic recovery behavior.
Basic size range
| Roll type | Nano-layer machine stretch film |
|---|---|
| Reference thickness | 11 microns reference TDS; other gauges by approved order specification |
| Reference width | 500 mm nominal; width tolerance +/- 4 mm in reference TDS |
| Supply form | Roll film; roll length, core, net weight and winding direction confirmed by customer specification |
| Technology direction | Nano-layer structure; 33-layer up to 55-layer direction by project discussion |
Performance reference
What to confirm during wrapping trials
Stretch film performance is affected by resin structure, gauge, pre-stretch setting, load geometry, pallet quality and transport condition. Values below are reference directions for specification discussion.
Reference TDS: MD >= 400%; TD >= 600%
Reference TDS: >= 45%; load retention >= 70%
Reference TDS: puncture breaking force >= 18.0 N; puncture elongation >= 80.0 mm
Typical applications
Where it may fit
- Nano-layer pallet wrap
- Warehouse load security
- Material-efficiency programs
- Machine wrapping lines
Product features
What this film is designed to support
- Ultra-thin downgauging direction
- High strength and stretch targets
- Strong load holding
- Performance confirmed by approved customer specification
Notes:
Reference values are based on the attached NanoForce technical data sheet and must be verified for each approved production lot and wrapping program. Best results require matching film gauge, machine pre-stretch, wrap pattern and pallet load profile.
